RAM Cargo Vans:
Swivel Ramps

"Light Plus Series" by WM System

Application Guide

Model
Description
W (in)
L (in)
Stored height (in)
Unit Weight (lbs)
Capacity (lbs)
ProMaster Super High Roof
Load Angle
ProMaster High Roof
Load Angle
ProMaster Low Roof
Load Angle
ProMaster City
Load Angle
9ALPC001
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
31
79
46
190
1500
15°
15°
15°
9ALPC235
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
37
108
61
165
1500
11°
11°
9ALPC235/RH
Light Plus Series Ramp, Standard capacity, Solid surface, RH swivel, 2 section, Rear AC unit compatible
37
108
61
230
1500
11°
11°
9ALPC229
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
37
126
68
175
1500
10°
10°
9ALPC551
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
47
78
46
185
1500
16°
16°
16°
9ALPC551/3S
Light Plus Series Ramp, Low capacity, Solid surface, LH swivel, 3 section
45
120
46
200
1500
12°
12°
12°
9ALPC553
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
47
98
56
150
1500
12°
12°
12°
9ALPC553/3S
Light Plus Series Ramp, Low capacity, Solid surface, LH swivel, 3 section
45
126
56
210
1500
10°
10°
10°
9ALPC275
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
47
108
61
220
1500
11°
11°
9ALPC279
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
47
126
69
200
1500
10°
10°
9ALPC235/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
37
108
61
165
1500
11°
11°
9ALPC235/PERF/RH
Light Plus Series Ramp, Standard capacity, Perforated surface, RH swivel, 2 section, Rear AC unit compatible
37
108
61
230
1500
11°
11°
9ALPC229/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
37
126
68
175
1500
10°
10°
9ALPC553/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
47
98
56
150
1500
12°
12°
12°
9ALPC275/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
47
108
61
220
1500
11°
11°
9ALPC279/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
47
126
69
200
1500
10°
10°

Image Gallery

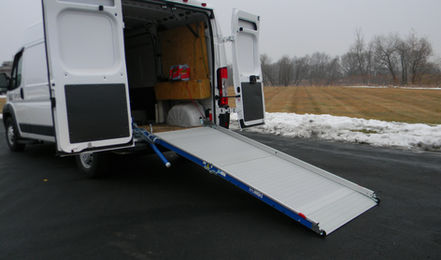

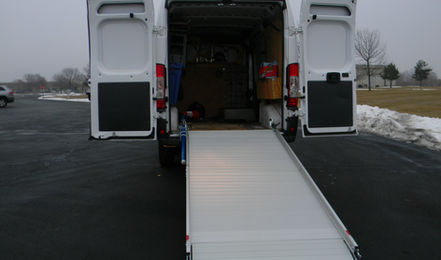

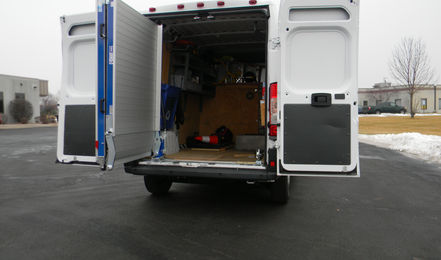

ProMaster High Roof

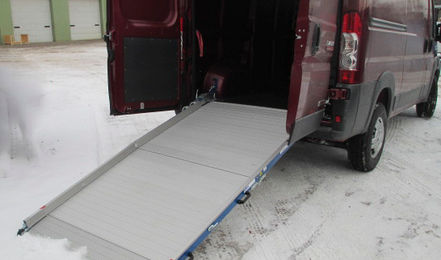

ProMaster Low Roof
