Hide-A-Ramp Loading Ramp

The Hide-A-Ramp is our newest loading ramp for cargo vans, designed to be our widest clearance loading system.  With a 48" wide free-and-clear ramp deck, there are no side rails or mounting hardware to get in the way when loading wide equipment. As long as your equipment fits in your cargo van, it can be safely loaded and unloaded using the Hide-A-Ramp.  You will also maintain the ability to load 40x48 pallets into the cargo area using a forklift.

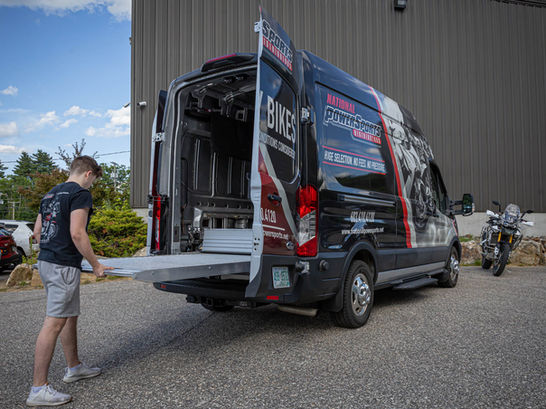

This ramp system is designed with a no-drill subfloor installation, housing the ramp horizontally just above the vehicle floor, raising the floor height by 6".  Aluminum tracks are bolted into existing holes, making it a modification-free install.  The ramp is manually operated, sliding on the aluminum tracks to deploy and store. See our videos below for use demonstration.

Designed with the lawncare industry in mind, the all-aluminum construction will withstand years of use in snowy, icy, muddy, wet and saltwater conditions.  An optional pallet tray is available for storage of fertilizer, salt or sand.

The Hide-A-Ramp is currently available for Ford Transit cargo vans only.  We are designing for additional vehicle models and expect to release them soon.

  • Brand: National Fleet Products

  • Product line: Hide-A-Ramp loading ramp

  • Country of origin: USA



Features

Ramp width and length close-up

48" width;

10' length.


2,500 lb. weight capacity.

Ford Transit Mid Roof_edited.jpg

Currently available for Ford Transit cargo vans.

Photo Dec 08, 3 00 44 PM.jpg

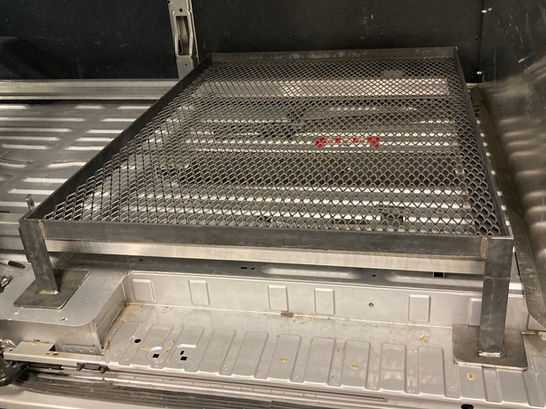

Optional: pallet tray available for supplies storage.


Solid surface with horizontal raised lines for traction assistance.

Ramp Features (3).png

Optional: Expanded metal or powder coated steel decking available.
