Mercedes Cargo Vans:
Swivel Ramps

"Light Plus Series" by WM System

Application Guide

Model
Description
Stored height (in)
Unit Weight (lbs)
W (in)
L (in)
Capacity (lbs)
Sprinter High Roof
Load Angle
4x4 Load Angle
Sprinter Low Roof
Load Angle
4x4 Load Angle
Metris
Load Angle
9ALPC001
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
46
190
31
79
1500
21°
23°
21°
23°
9ALPC235
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
61
165
37
108
1500
15°
17°
9ALPC235/RH
Light Plus Series Ramp, Standard capacity, Solid surface, RH swivel, 2 section, Rear AC unit compatible
61
230
37
108
1500
15°
17°
9ALPC229
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
68
175
37
126
1500
13°
15°
9ALPC551
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
46
185
47
78
1500
21°
23°
21°
23°
9ALPC551/3S
Light Plus Series Ramp, Low capacity, Solid surface, LH swivel, 3 section
46
200
45
116
1500
13°
15°
13°
15°
9ALPC553
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
56
150
47
98
1500
16°
18°
16°
18°
9ALPC553/3S
Light Plus Series Ramp, Low capacity, Solid surface, LH swivel, 3 section
56
210
45
135
1500
13°
15°
13°
15°
9ALPC275
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
61
220
47
108
1500
15°
17°
9ALPC279
Light Plus Series Ramp, Standard capacity, Solid surface, LH swivel, 2 section
69
200
47
126
1500
13°
15°
9ALPC235/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
61
165
37
108
1500
15°
17°
9ALPC235/PERF/RH
Light Plus Series Ramp, Standard capacity, Perforated surface, RH swivel, 2 section, Rear AC unit compatible
61
230
37
108
1500
15°
17°
9ALPC229/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
68
175
37
126
1500
13°
15°
9ALPC553/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
56
150
47
98
1500
16°
18°
16°
18°
9ALPC275/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
61
220
47
108
1500
15°
17°
9ALPC279/PERF
Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section
69
200
47
126
1500
13°
15°

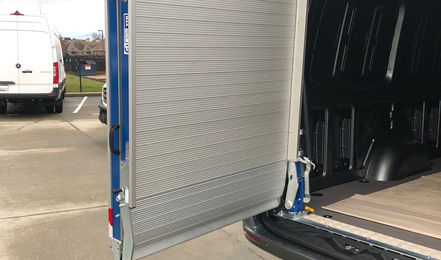

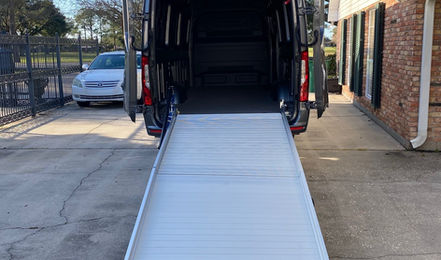

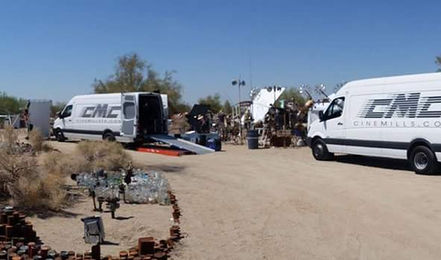

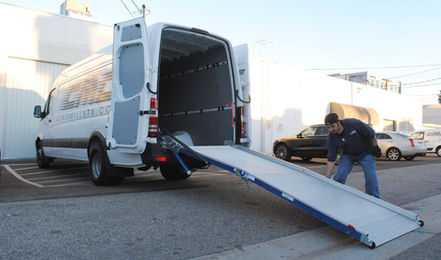

Image Gallery

Sprinter High Roof
Sprinter Low Roof
Metris
