Ford Cargo Vans:
Swivel Loading Ramps
"Light Plus Series" by WM System
Application Guide
Title | Description | W
(in) | L
(in) | Stored
height
(in) | Unit Weight (lbs) | Capacity
(lbs) | Transit High Roof | Load Angle | Transit Mid Roof | Load Angle | Transit Low Roof | Load Angle | Transit Connect | Load Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9ALPC229/PERF | Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section | 37 | 126 | 68 | 175 | 1500 | ✔ | 13° | ||||||
9ALPC553/PERF | Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section | 47 | 98 | 56 | 150 | 1500 | ✔ | 17° | ✔ | 17° | ||||
9ALPC275/PERF | Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section | 47 | 108 | 61 | 220 | 1500 | ✔ | 15° | ✔ | 15° | ||||
9ALPC279/PERF | Light Plus Series Ramp, Standard capacity, Perforated surface, LH swivel, 2 section | 47 | 126 | 69 | 200 | 1500 | ✔ | 13 ° |
If you have a factory-supplied rear AC unit (blower) installed in your Ford Transit, only a right-hand swivel ramp will be compatible with your vehicle. If the blower is covered with a plastic shroud, a simple modification may be required to allow for clearance of mounting hardware. Please call for more details.

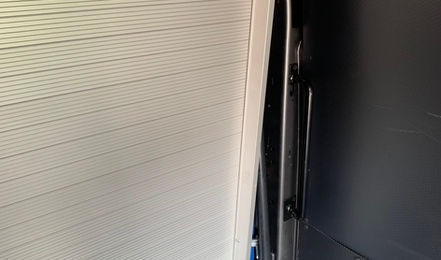

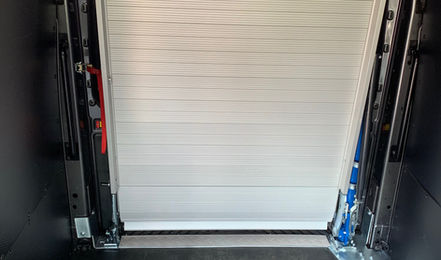

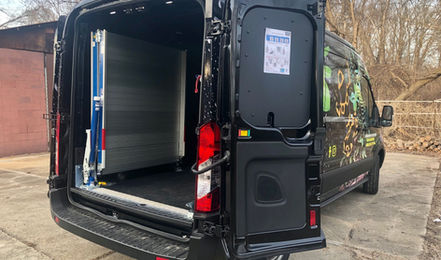

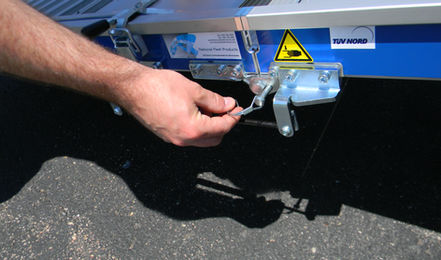

Image Gallery
Transit High-Roof
Transit Mid-Roof
Transit Low-Roof
