Ford Cargo Vans:
Non-Swivel Loading Ramps

"Light Series" by WM System

Application Guide

Model
Description
W (in)
L (in)
Stored height (in)
Unit Weight (lbs)
Capacity (lbs)
Transit High Roof
Load Angle
Transit Mid Roof
Load Angle
Transit Low Roof
Load Angle
Transit Connect
Load Angle
9ALN505/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 2 section, Side door compatible
23
78
43
880
✔
21°
✔
21°
✔
21°
✔
17°
9ALN501/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 2 section, Side door compatible
23
98
53
880
✔
17°
✔
17°
9ALN503/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 2 section, Side door compatible
23
108
58
880
✔
15°
✔
15°
9ALN523/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 2 section
23
128
68
880
✔
13°
9ALN001/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 2 section, Side door compatible
31
79
43
880
✔
21°
✔
21°
✔
21°
✔
17°
9ALN001/3S/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 3 section, Side door compatible
29
116
43
880
✔
14°
✔
14°
✔
14°
✔
11°
9ALN032/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 2 section
39
88
48
880
✔
19°
✔
19°
9ALN033/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 2 section
39
98
53
880
✔
17°
✔
17°
9ALN036/NS/HC
Light Series Ramp, High capacity, Solid surface, Non-swivel, 2 section
39
108
58
1320
✔
15°
✔
15°
9ALN038/NS/HC
Light Series Ramp, High capacity, Solid surface, Non-swivel, 2 section
39
128
68
1320
✔
13°
9ALN553/NS
Light Series Ramp, Standard capacity, Solid surface, Non-swivel, 2 section
47
98
53
880
✔
17°
✔
17°
9ALN275/NS/HC
Light Series Ramp, High capacity, Solid surface, Non-swivel, 2 section
47
108
58
1320
✔
15°
✔
15°
9ALN277/NS/HC
Light Series Ramp, High capacity, Solid surface, Non-swivel, 2 section
47
128
68
1320
✔
13°
9ALN001/PERF/NS
Light Series Ramp, Standard capacity, Perforated surface, Non-swivel, 2 section, Side door compatible
31
79
43
880
✔
21°
✔
21°
✔
21°
✔
17°
9ALN003/PERF/NS
Light Series Ramp, Standard capacity, Perforated surface, Non-swivel, 2 section, Side door compatible
31
98
53
880
✔
17°
✔
17°
9ALN036/PERF/NS
Light Series Ramp, Standard capacity, Perforated surface, Non-swivel, 2 section
39
108
58
880
✔
15°
✔
15°
9ALN036/PERF/NS/HC
Light Series Ramp, High capacity, Perforated surface, Non-swivel, 2 section
39
108
58
1320
✔
15°
✔
15°
9ALN553/PERF/NS
Light Series Ramp, Standard capacity, Perforated surface, Non-swivel, 2 section
47
98
53
880
✔
17°
✔
17°
9ALN275/PERF/NS/HC
Light Series Ramp, High capacity, Perforated surface, Non-swivel, 2 section
47
108
58
1320
✔
15°
✔
15°
9ALN277/PERF/NS/HC
Light Series Ramp, High capacity, Perforated surface, Non-swivel, 2 section
47
128
68
1320
✔
13°

Image Gallery

Transit High-Roof
Transit Mid-Roof

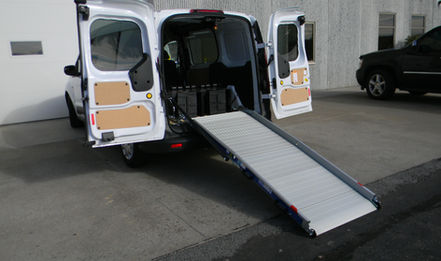

Transit Connect
